MCP2515 CAN bus shield

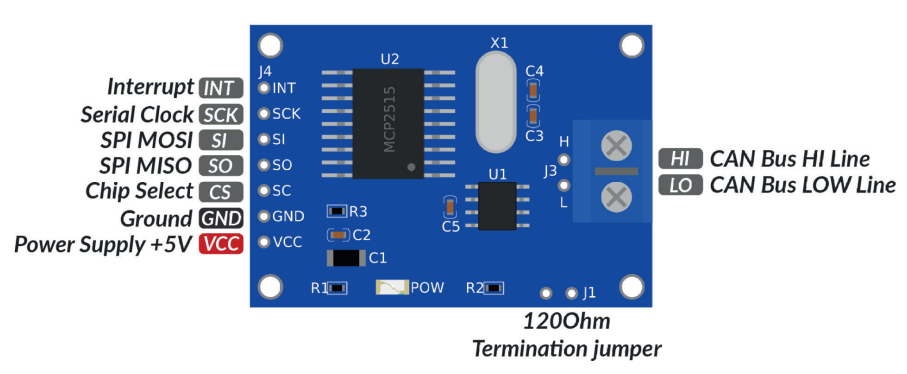

Pinout

Summary

The MCP2515 CAN bus shield is a versatile microcontroller shield that allows for easy integration of CAN bus communication capabilities into various projects. It utilizes the MCP2515 CAN controller, which implements the CAN 2.0B specification and offers a SPI interface for communication with microcontrollers. This shield is commonly used with microcontrollers.

Key features of the MCP2515 CAN bus shield include:

• CAN 2.0B support: It supports both standard and extended CAN frames.
• SPI interface: It communicates with the microcontroller via a simple SPI interface.
• 120-ohm termination resistors: These resistors ensure proper signal termination on the CAN bus.
• High speed: It can support data rates up to 1 Mbps.
• Compact size: The shield is small and easy to integrate into various projects.

The MCP2515 CAN bus shield is ideal for applications that require reliable and efficient communication with CAN bus devices, such as automotive systems, industrial automation, and robotics.
