ST7735 TFT 1.77″
Posted
Updated
Byp43lz3r

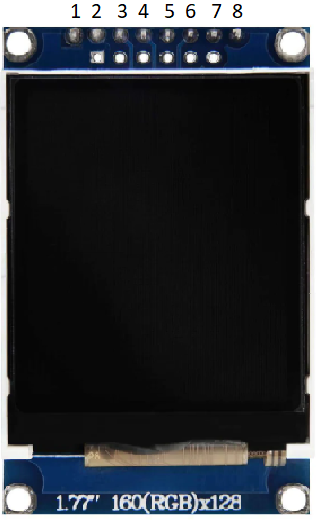

Pinout
| Pin | Definition |
| 1 | GND |
| 2 | VCC |
| 3 | SCK |
| 4 | SDA / MOSI |
| 5 | RES |
| 6 | RS/DC |
| 7 | CS |
| 8 | LED |
| Display pin | Pin name | Arduino Pin | STM32 | Node MCU | D1 Mini | ESP32 DevKitC4 | ESP32 Plus |
| 1 | GND | GND | GND | GND | GND | GND | GND |
| 2 | VCC | VCC | VCC(3.3V) | VCC(3.3V) | 3.3V | 3.3V | 3.3V |
| 3 | SCK | 13 | SCK/PB3/15 | SCK | GPIO14 | CLK/GPIO18 | 18 |
| 4 | SDA | 11 | MOSI/PB5/13 | MOSI | GPIO13 | MOSI/GPIO23 | 23 |
| 5 | RES | 8 | PB1 | RES | GPIO0 | GPIO4 | 25 |
| 6 | RS (DC) | 9 | PB12 | RSDC | GPIO16 | GPIO2 | 26 |
| 7 | CS | 10 | PB13 | CS | GPIO15 | GPIO15 | 5 |
| 8 | LEDA | 3.3 or 5V | VCC (3.3V) | LEDA | 3.3V | 3.3V | 3.3V |
